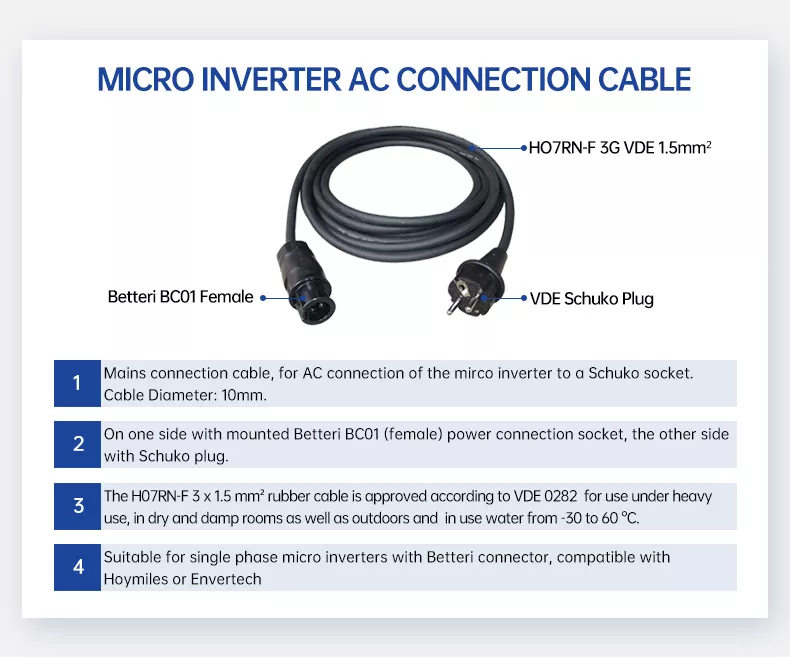

| Order Data：BC01 Female Connector to VDE Schuko Plug
BC01 Female could be compatible with Hoymiles\Deye\Envertech\Bosswerk\TSUN-TSOL micro inverters. |
||||||||||||

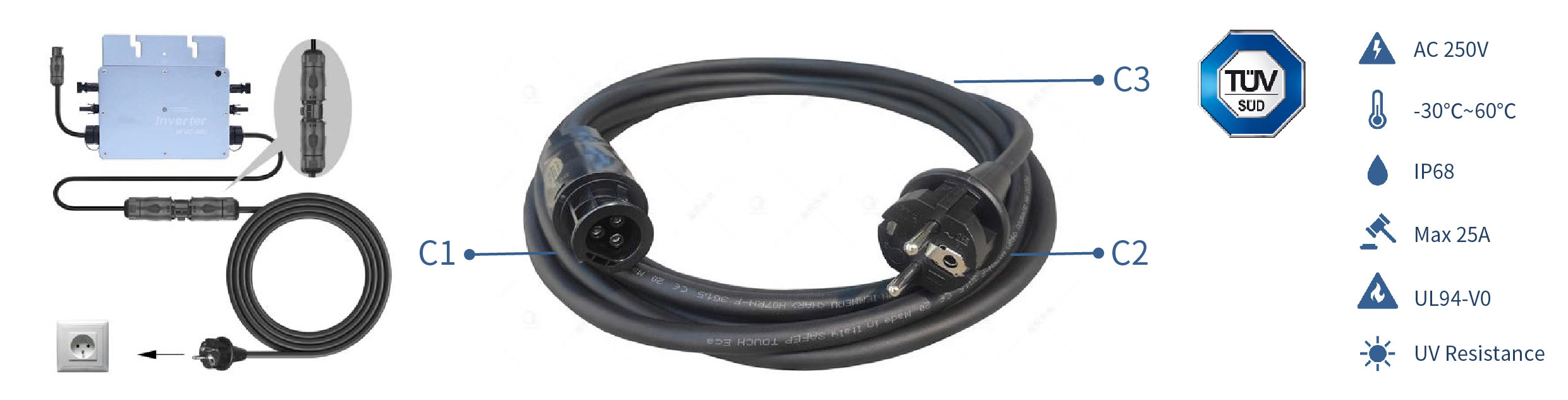

| PN | C1 | C2 | C3 | Length/m | Remark | |||||||
| A5J301 | Betteri BC01 Female | H07RN-F 3G VDE 3*1.5mm2 | VDE Schuko Plug | 5m | AC250V,15A,5m | |||||||
| A5J302 | 10m | AC250V,15A,10m | ||||||||||
| A5J303 | 15m | AC250V,15A,15m | ||||||||||
| A5J304 | 20m | AC250V,15A,20m | ||||||||||
| A5J305 | 30m | AC250V,15A,30m | ||||||||||
| A5J306 | Betteri BC01 Female | H07RN-F 3G VDE 3*2.5mm2 | VDE Schuko Plug | 5m | AC250V,25A,5m | |||||||
| A5J307 | 10m | AC250V,25A,10m | ||||||||||
| A5J308 | 15m | AC250V,25A,15m | ||||||||||
| A5J309 | 20m | AC250V,25A,20m | ||||||||||
| A5J310 | 30m | AC250V,25A,30m | ||||||||||
| A5J311 | Betteri BC01 Female | H07RN-F 3G VDE 3*4.0mm2 | VDE Schuko Plug | 5m | AC250V,25A,5m | |||||||
| A5J312 | 10m | AC250V,25A,10m | ||||||||||
| A5J313 | 15m | AC250V,25A,15m | ||||||||||
| A5J314 | 20m | AC250V,25A,20m | ||||||||||
| A5J315 | 30m | AC250V,25A,30m | ||||||||||
| Remark:The harness could match 3*1.5mm2 to 3*4mm2 cables, they could be wildly used in different applications. The harness series connectors have IP67 water-proof rating and can be used in a wide operating temperature range from -30 °C to 60 °C.Customized options available, for more information, please contact NIU Power sales team: Marketing@niu-power.com | ||||||||||||
| Order Data：A5-3C Female Connector to VDE Schuko Plug
A5-3CF is compatible with BC01 Male. It also could be compatible with Hoymiles\Deye\Envertech\Bosswerk\TSUN-TSOL micro inverters. |
||||||||||||
| PN | C1 | C2 | C3 | Length/m | Remark | |||||||
| A5J316 | A5-3P Female (Compatible with BC01 male) | H07RN-F 3G VDE 3*1.5mm2 |
VDE Schuko Plug | 5m | AC250V,15A,5m | |||||||
| A5J317 | 10m | AC250V,15A,10m | ||||||||||
| A5J318 | 15m | AC250V,15A,15m | ||||||||||
| A5J319 | 20m | AC250V,15A,20m | ||||||||||
| A5J320 | 30m | AC250V,15A,30m | ||||||||||
| A5J321 | A5-3P Female (Compatible with BC01 male) | H07RN-F 3G VDE 3*2.5mm2 |
VDE Schuko Plug | 5m | AC250V,25A,5m | |||||||
| A5J322 | 10m | AC250V,25A,10m | ||||||||||
| A5J323 | 15m | AC250V,25A,15m | ||||||||||
| A5J324 | 20m | AC250V,25A,20m | ||||||||||
| A5J325 | 30m | AC250V,25A,30m | ||||||||||
| A5J326 | A5-3P Female (Compatible with BC01 male) | H07RN-F 3G VDE 3*4.0mm2 |
VDE Schuko Plug | 5m | AC250V,25A,5m | |||||||
| A5J327 | 10m | AC250V,25A,10m | ||||||||||
| A5J328 | 15m | AC250V,25A,15m | ||||||||||
| A5J329 | 20m | AC250V,25A,20m | ||||||||||
| A5J330 | 30m | AC250V,25A,30m | ||||||||||
| PN | Name | IP | PIC | Material | Remark | |||||||
| A5J401 | Female Connector water proof Plug |
IP68 |  |
PPO+Rubber | ||||||||
| A5J402 | Male Connector water proof Plug |
IP68 |  |
PPO | ||||||||
| A5J403 | Female Connector dust proof Plug |
IP51 |  |
TPE | ||||||||
| A5J404 | Male Connector dust proof Plug |
IP51 |  |
TPE | ||||||||
