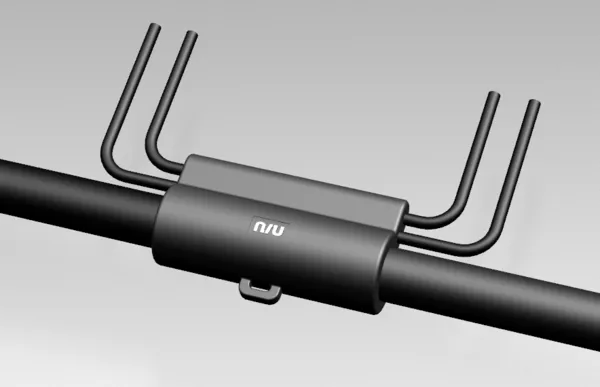

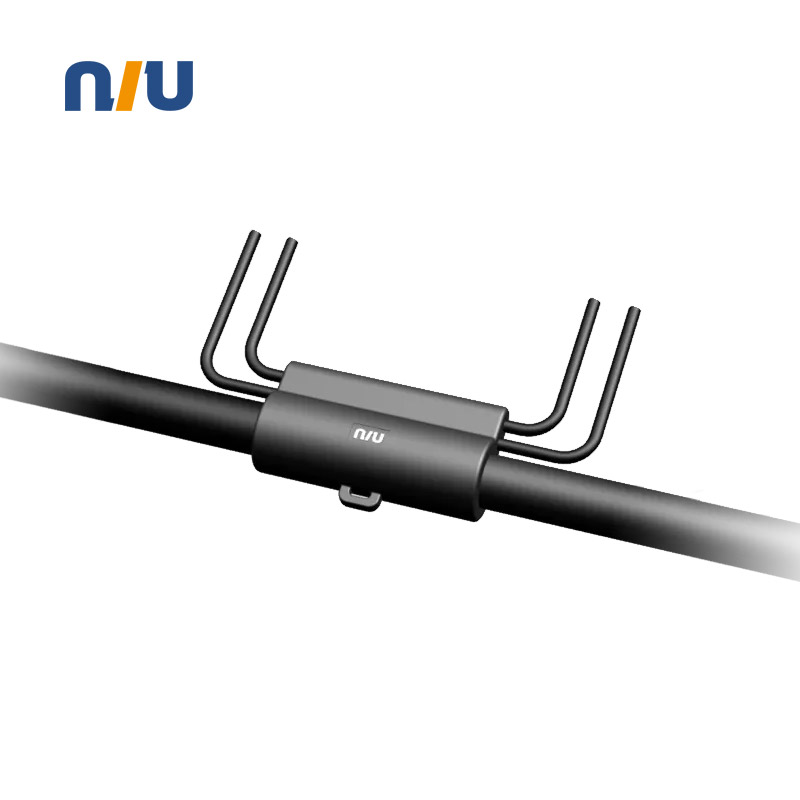

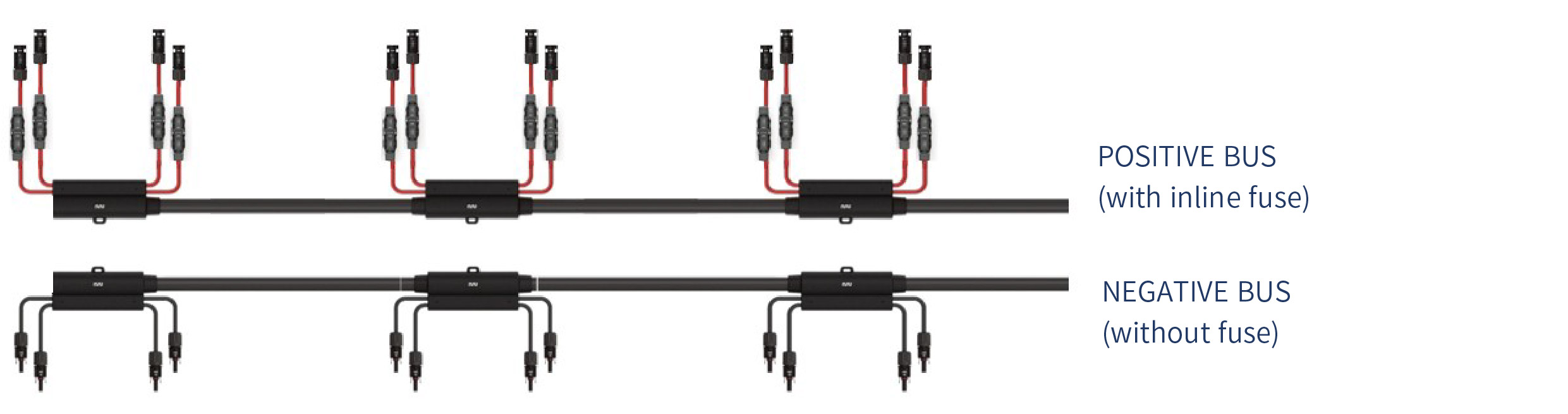

NIU Power introduces the Galaxy BUS Assembly, or Galaxy BUS for short. The Galaxy BUS is an above ground aluminum trunk system that combines the functionality of cable assemblies, combiner boxes, and fusing all into one. This free air derated system eliminates the need for standard combiner boxes, messy multiple conductor string wires, cable trays, trenching, and field crimping. Factory manufactured and quality guaranteed.
H6 Galaxy Series integrated confluence products, using high-quality welding process to ensure the reliability of electrical connections. At the same time, the fire-retardant and weather-resistant adhesive sealing process is adopted to ensure the 30-year service life requirement of the product in the outdoor exposed environment. The products adopts a number of patented technologies, including but not limited to copper-aluminum transition composite process parts, wire welding process, cable fastening process and adhesive sealing process.
| ITEM | SPEC | ||||||||
| 额定电压 RATED VOLTAGE | DC 1500V | ||||||||
| 执行标准 STANDARD | IEC62852 | ||||||||
| 防水等级 IP WATERPROOF | IP68 （1m,1h） | ||||||||
| 阻燃等级 Flame Retardant Rating | UL94-V0 | ||||||||
| 每个支路额定电流 String Input Current Max | ≤40A for every input string | ||||||||
| 母线额定电流 BUS Current Max | REFER BELOW TABLE | ||||||||
| 使用寿命 LIFE | ≥30years | ||||||||
| MATERIAL SPEC | |||||||||
| PART | MATERIAL | SPEC | STANSAERD | ||||||
| BUS Cable |
1X150mm2 DC1500V Al Alloy | DC 1500V， I： ≤300A，R≤0.206Ω/km@20℃ | 2FPG 2642 | ||||||
| 1X185mm2 DC1500V Al Alloy | DC 1500V， I： ≤360A，R≤0.164Ω/km@20℃ | ||||||||
| 1X240mm2 DC1500V Al Alloy | DC 1500V， I： ≤480A，R≤0. 12Ω/km@20℃ | ||||||||
| FUSE | Solar Inline Fuse | Voltage:DC 1500V/Current:Follow PV Panel Spec | IEC 60947 &IEC62852 |
||||||
| QTY | QTY of Strings | ||||||||
| STRING Cable |
1X4 mm2 DC1500V Copper Cable | DC1500V,≤40A | IEC 62930 | ||||||
| CONNECTOR | MC4-EVO2 or Compatible | DC1500V,≤40A | IEC62852 | ||||||
| Remark: Plastic over-mold material is suitable for outdoor use with respect to exposure to UV light, water exposure and immersion in accordance with UL 746A,746B and746C. | |||||||||
Remark、 Plastic over-mold material is suitable for outdoor use with respect to exposure to UV light, water exposure and immersion in accordance with UL 746A, 746B and 746C.
