| Technical Data 技术参数 | |||||
| Rated Voltage | DC 1500V | ||||
| Rated Current | Max 70A | ||||
| Ambient temperature | -40℃ up to +85℃ | ||||
| Contact Resistance | ≤0.05mΩ | ||||
| Pollution Degree | Class II | ||||
| Protection Degree | Class II | ||||
| Fire Resistance | UL94-V0 | ||||
| Rated Impulse Voltage | 16KV | ||||
| Locking System | NEC Locking Type | ||||
| Order Data 产品型号 | ||||||||||||
| TYPE | Cable Spec | Current/ A | Package | Connectors | ||||||||
| H-3B1-0202 | Input：2x14Awg/2.5mm2 Output：1x14Awg/2.5mm2 | Input: ≤3x25A Output:≤1x25A （适用薄膜系统） |
10 pairs /Carton | Cable：14Awg / 2.5mm2 | ||||||||

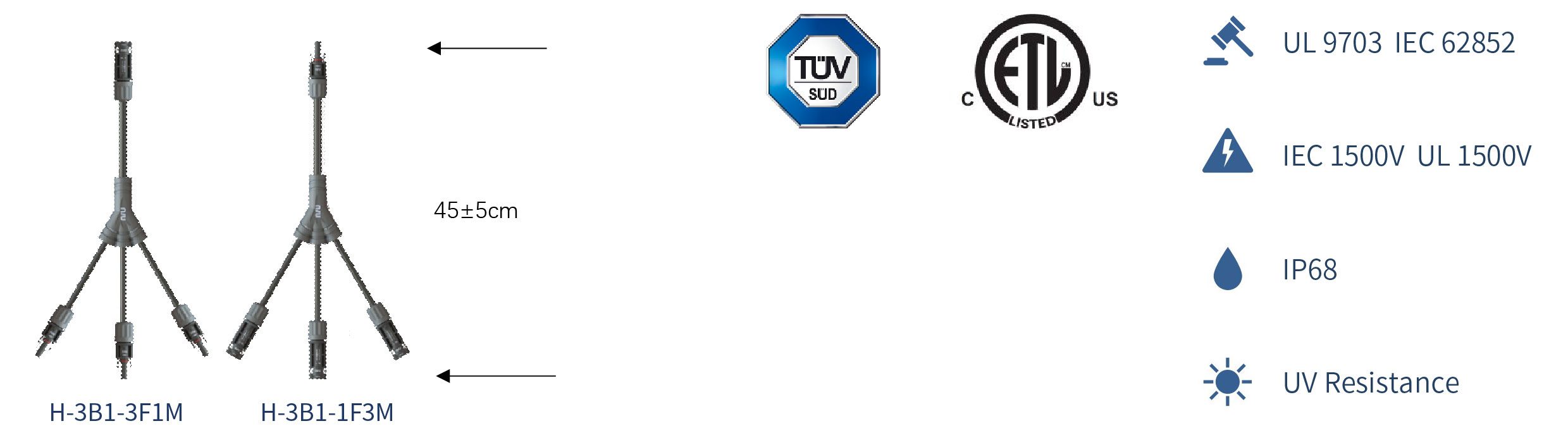

| H-3B1-3F1M-25 | ||||||||||||
| H-3B1-1F3M-25 | ||||||||||||
| H-3B1-0410 | Input：3x12Awg/4mm2 Output：1x8Awg/10mm2 | Input: ≤3x35A Output:≤1x50A （适用晶硅系统） |
10 pairs /Carton | Input Cable：12Awg / 4mm2 Output Cable：8Awg / 10mm2 | ||||||||
| H-3B1-3F1M-410 | ||||||||||||
| H-3B1-1F3M-410 | ||||||||||||
| H-3B1-0416 | Input：3x12Awg/4mm2 Output：1x6Awg/16mm2 | Input: ≤3x35A Output:≤1x70A （适用晶硅系统） |
10 pairs /Carton | Input Cable：12Awg / 4mm2 Output Cable：8Awg / 10mm2 | ||||||||
| H-3B1-3F1M-416 | ||||||||||||
| H-3B1-1F3M-416 | ||||||||||||
| Remark:H series harnesses use high quality weather resistance materials that guarantee long-term reliability. H series Harnesses could match 2.5 mm2 to 240 mm2 cables, it could be wildly used in different applications. H series harnesses have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 85 °C. | ||||||||||||
