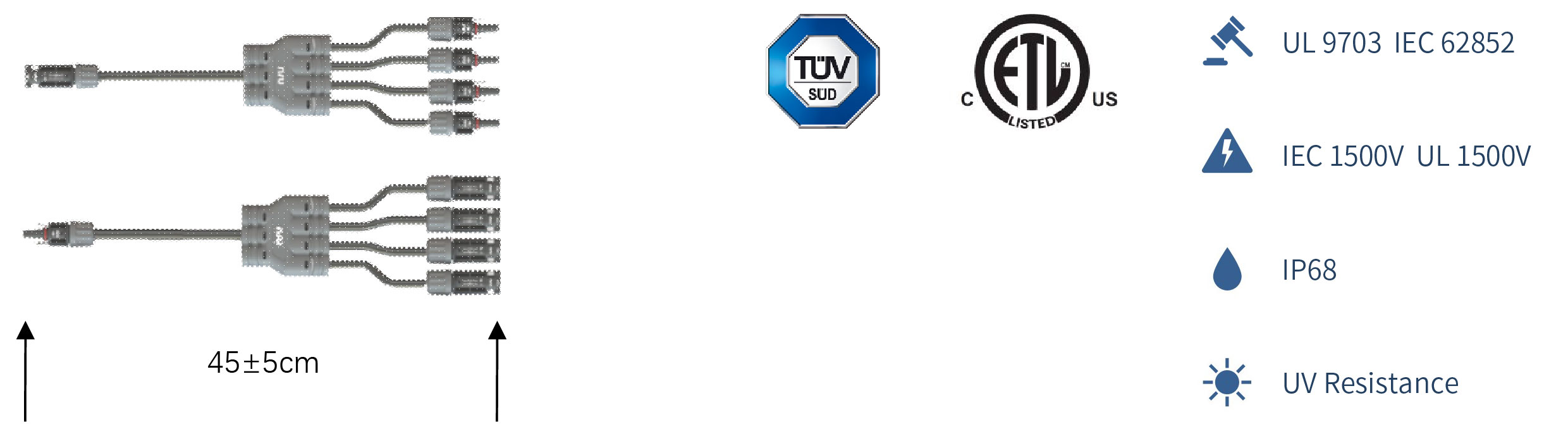

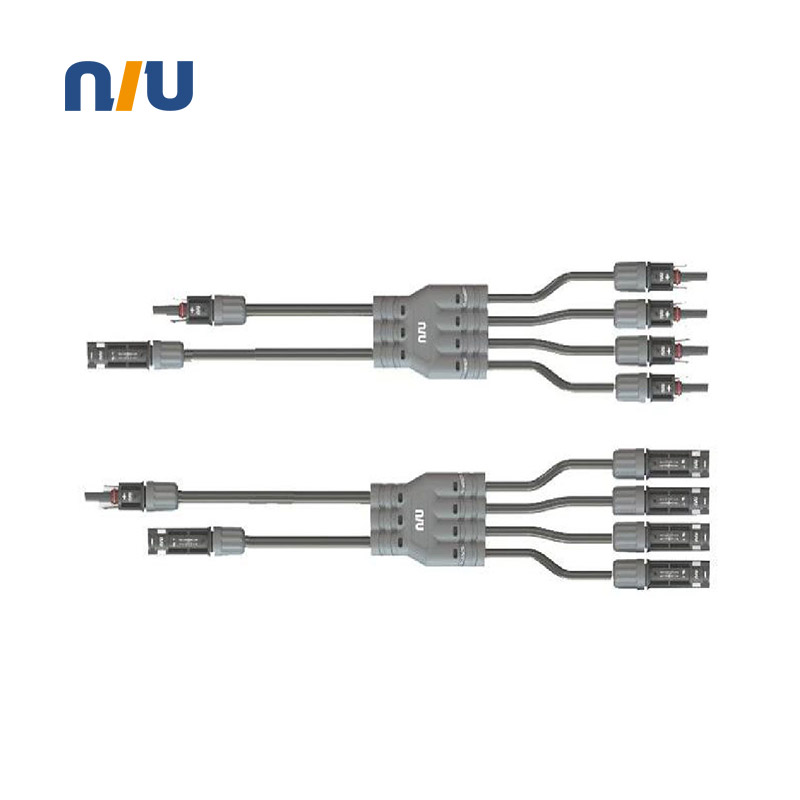

NIU Power 5B1 Branch use high quality materials that guarantee long-term reliability. Lower contact resistance and higher current transfer capability ensure high product efficiency. NIU Power 5B1 Branch have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 85 °C.
H-5B1 系列光伏汇流线束采用高品质绝缘耐候材料，可保障产品在户外⻓期安全使用。正负极一体式设计大幅简化了安装，美化了布线。较⼩的接触电阻和更大电流传输能⼒保障了产品⻓期使用的可靠性。产品符合IP68 额定标准且具有宽泛的环境适用范围。客户应根据输出电流规格选定合适的产品型号。
| Technical Data 技术参数 | ||||
| Rated Voltage | IEC 1500V\UL1500V | |||
| Rated Current | Max 70A | |||
| Ambient temperature | -40℃ up to +85℃ | |||
| Contact Resistance | ≤0.05mΩ | |||
| Pollution Degree | Class II | |||
| Protection Degree | Class II | |||
| Fire Resistance | UL94-V0 | |||
| Rated Impulse Voltage | 16KV | |||
| Locking System | NEC Locking Type | |||
| Order Data 产品型号 | |||||||||||
| Part No. | Cable Spec | Current / A | Package | Connector | |||||||

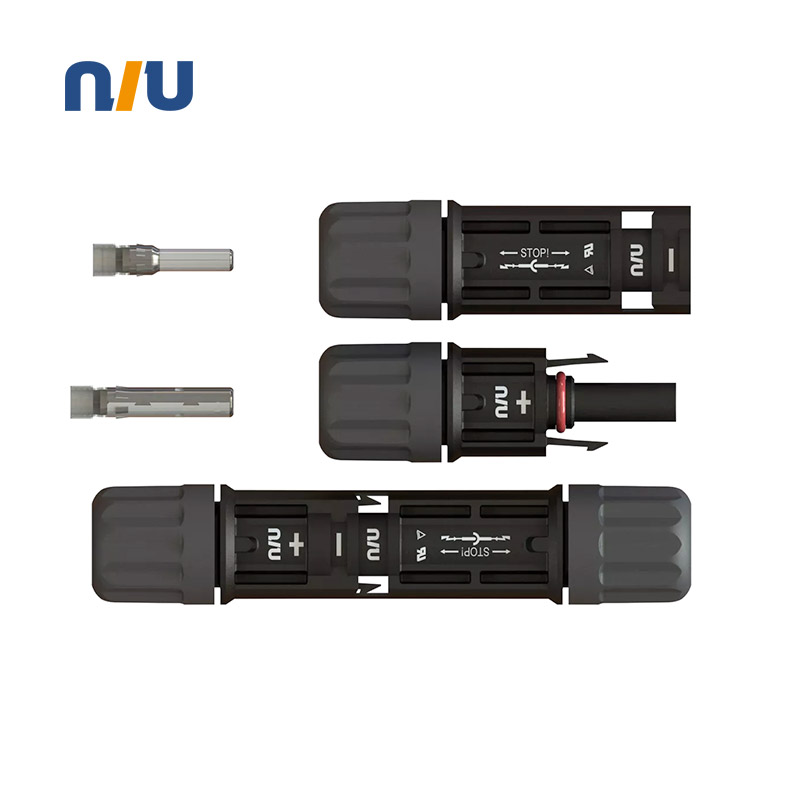

| H-5B1-0204 | Input:5x14Awg/2.5mm2 Output:12Awg/4mm2 | Input:≤25A*5 Output:≤40A*1 | 10 pairs / Carton | DEFAULT: A4 Max Solar Connector Option: Other solar connectors | |||||||
| H-5B1-5F1M-0204 | |||||||||||
| H-5B1-5M1F-0204 | |||||||||||
| H-5B1-0410 | Input:5x12Awg/4mm2 Output:8Awg/10mm2 | Input:≤35A*5 Output:≤50A*1 | 10 pairs / Carton | ||||||||
| H-5B1-5F1M-0410 | |||||||||||
| H-5B1-5M1F-0410 | |||||||||||
| H-5B1-0416 | Input:5x12Awg/4mm2 Output:6Awg/16mm2 | Input:≤35A*5 Output:≤70A*1 | 10 pairs / Carton | ||||||||
| H-5B1-5F1M-0416 | |||||||||||
| H-5B1-5M1F-0416 | |||||||||||
| Remark:H series harnesses use high quality weather resistance materials that guarantee long-term reliability. H series Harnesses could match 2.5 mm2 to 240 mm2 cables, it could be wildly used in different applications. H series harnesses have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 85 °C. | |||||||||||
