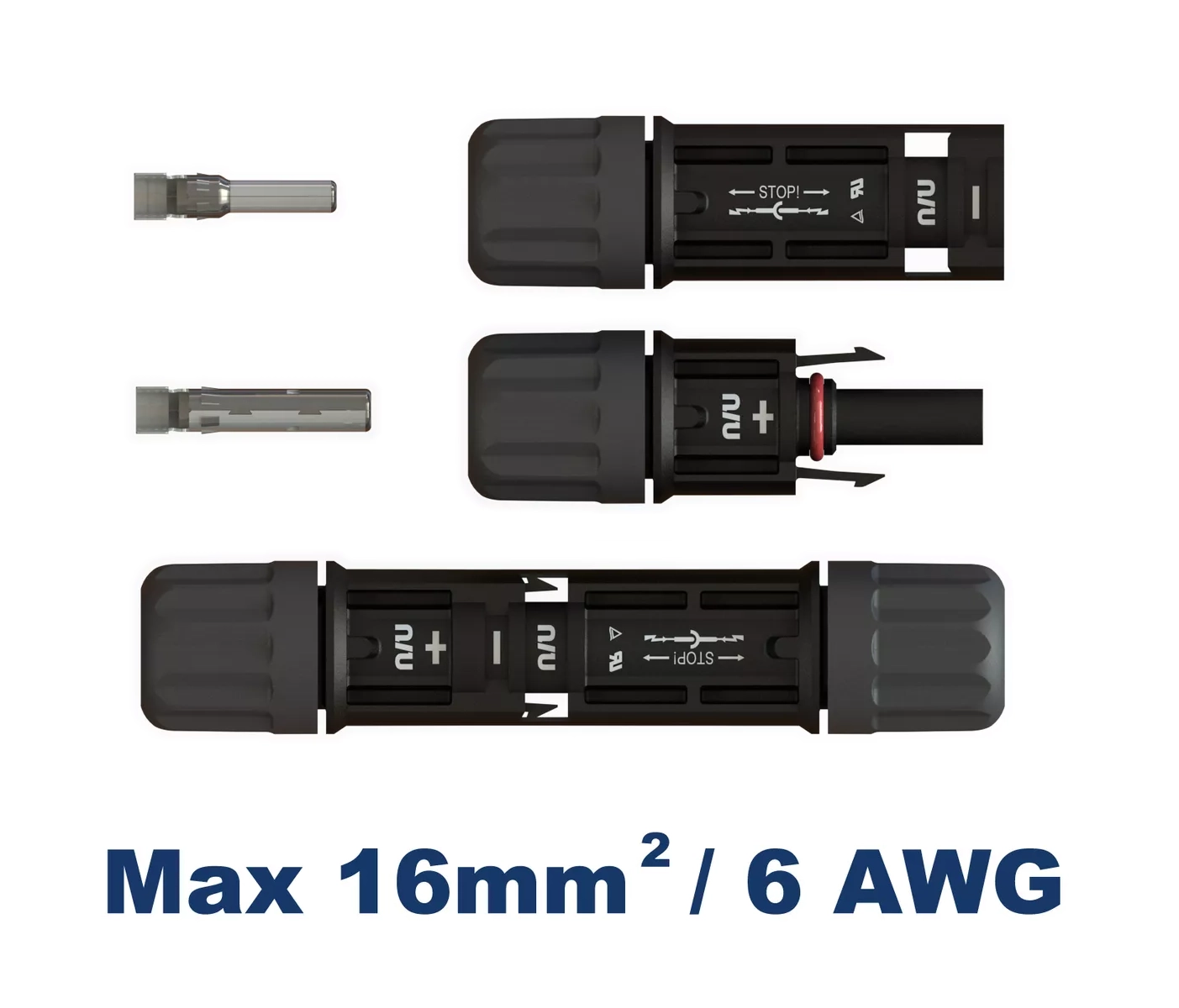

Product Overview
A4 Max Series connectors use high quality weather resistance materials that guarantee long-term reliability.
A4 Max could match 2.5 mm2 to 16mm2 cables, it could be wildly used in different applications. The lower contact resistance and higher current transfer capability ensure high product efficiency. A4 Max connectors have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 85 °C.
| Technical Data | ||||||||||
| Rated Voltage | IEC 1500V & UL1500V | |||||||||
| Certification | IEC 62852; UL 6703 | |||||||||
| Rated Current | Max 70A | |||||||||
| Ambient Temp | -40℃ up to +85℃ | |||||||||
| Contact Resistance | ≤0.25mΩ | |||||||||
| Pollution Degree | Class II | |||||||||
| Protection Degree | Class II | |||||||||
| Fire Resistance | UL94-V0 | |||||||||
| Rated Impulse Voltage | 16KV | |||||||||
